SPECIFICATIONS



Aerial Photography: No



Anti-wind Ability: as show

Brand Name: EACHINE

Camera Mount Type: Other

Certification: CE

Charging Time: about 60 minutes

Charging Voltage: as show

Control Channels: 6 channels

Controller Battery: Not included

Controller Mode: MODE1,MODE2

Dimensions: 31cm-50cm

Drone Weight: as show

Features: Other

Flight Time: 10~20

High-concerned chemical: None

Indoor/Outdoor Use: Outdoor

Is Batteries Included: Yes

Is Electric: Lithium Battery

Material: Metal,Plastic,Carbon Fiber

Model Number: E190

Operator Skill Level: Beginner,Intermediate

na

Package Includes: Batteries,Operating Instructions,Remote Controller,USB Cable

Power Source: Electric

Recommend Age: 14+y

Remote Control: Yes

Remote Distance: More than 120 meters

State of Assembly: Ready-to-Go

Takeoff Weight: as show

Transit Time (Days): as show

Type: Airplane

Video Capture Resolution: Other

Warning: 14+

Warranty: No



Specification:
Brand: Eachine
Item: E190

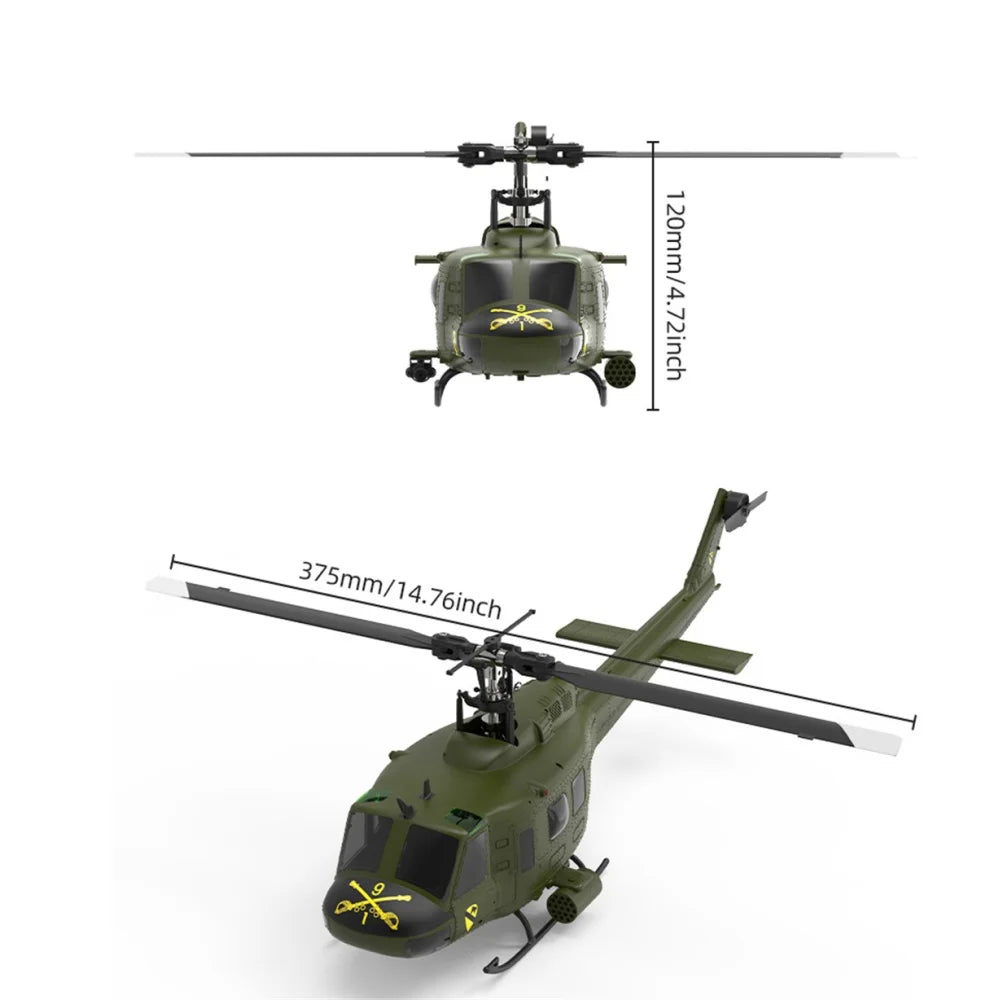

Product size:
Rotor diameter:372mm
Body length: 350mm
Height:122mm
Radio Frequency Band: 2.4GHz
Remote control distance (m): More than 120 meters
Battery:Body: LI-POLY 7.4V(1200mAh) 25C
Charging time: about 60 minutes
Time used: about 10-12 minutes



Function Description:

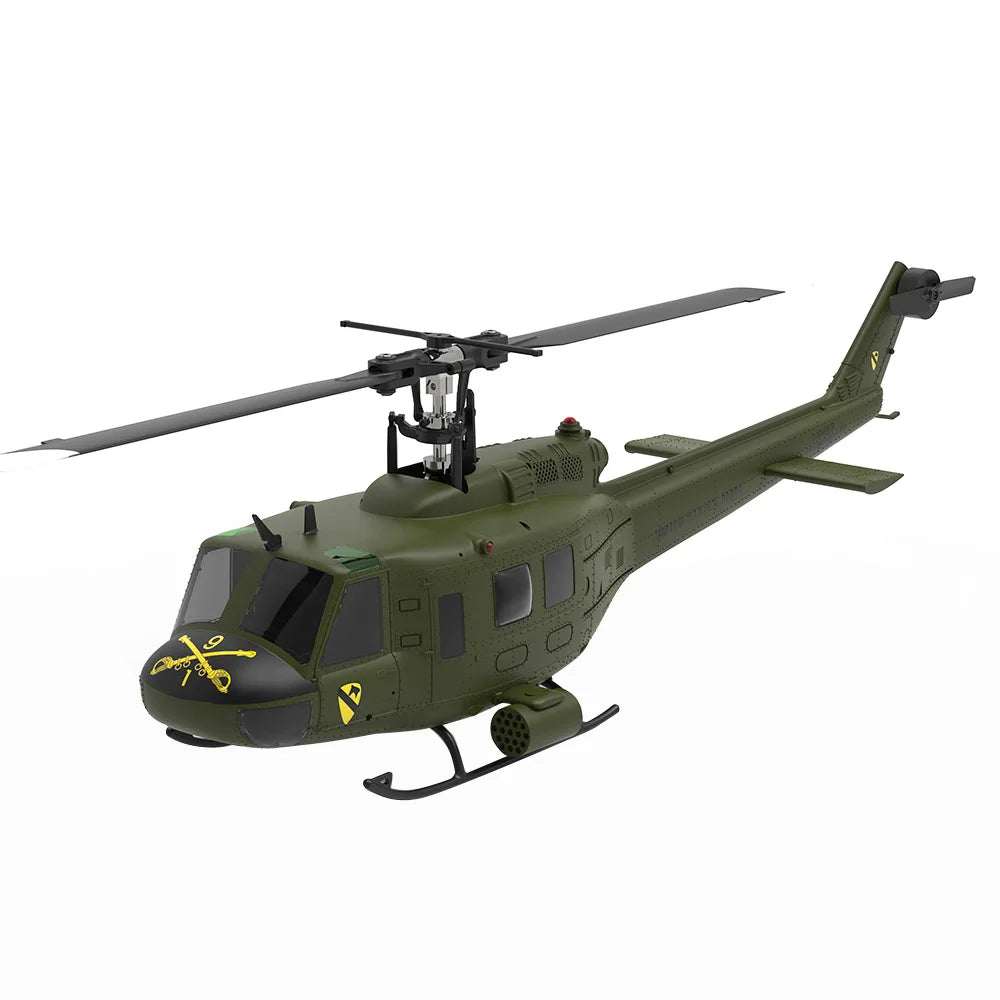

1> It is scaled down according to the 34:1 ratio of the UH-1 Huey helicopter of Bell Helicopter Company in the United States, with high-simulation appearance details and cool lights.

2> It adopts a flybarless design, a dual-axis co-drive motor, and an electronic stabilization system, which makes the feel more precise, the flight more stable, and the optimized structure reduces the chance of damage.

3> The propeller is designed based on the aerodynamic principle to provide strong power and self-stability of the fuselage. It is efficient, power-saving and has a long flight time. The blades are made of nylon + carbon fiber composite materials, which are high in strength, good in toughness, impact-resistant, non-deformable and durables.

4> It uses 2511 1200KV brushless motors for self-stabilization and co-drive to reduce gear agitation, and has the characteristics of low noise, high torque, sufficient power and high efficiency. The special high-temperature resistant magnetic steel can withstand 150 degrees high temperature without damage, which increases the service life.

5> The tail lock motor uses a special 1204 5500KV brushless motor, which is high temperature resistant, fast in response speed, stable tail lock, and not easy to be damaged after long-term work.

6> Use an enlarged 4.3g metal gear servo with high torque, fast response, high precision, and accurate return to center. The response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel goo,d and last longer. Using 3 servos, it can fly accurately even if there is 4-5 winds outdoors.

7> Use a 6-axis gyroscope. It has a stable, fast and accurate flight attitude, which is especially suitable for beginners to fly.

8> Use high-precision visual (optical flow) positioning and air pressure high-altitude mode, and it has a fixed-point function indoors and outdoors (limited height), which is easier for beginners to master.

9> Intelligent high-altitude one-button inverted flight, the inverted flight mode is operated in the same way as the forward flight mode, and beginners can easily master the inverted flight control essentials and become familiar with direction control.

10> Use high-precision CNC rotor head cross plate to optimize the structure, reduce weight, and greatly reduce the probability of aircraft damage.

11> The casing adopts hot runner injection molding technology, with high simulation details, good elasticity, toughness and not easy to crash.

12> Standard six-channel remote control, independent potentiometer optimizes the output of the joystick, and the operation is more precise.

13> Can be connected to an ELRS receiver, and is compatible with open source remote controls on the market.

14> Professionally customized high-rate lithium polymer 7.4V 1200mah 25C battery, high discharge rate and long service life. The flight time is about 9-12 minutes, and it can be used for 500+ cycles under normal use. It has functions such as preventing overcharge, over discharge, and low power indication, which can effectively extend the battery life.

15> Intelligent module battery, with charging protection and low power protection functions, uses the universal TYPE-C plug on the market, and is more convenient to charge.



Package included:

1 x E190 RC Helicopter

1 x USB Cable

1 x Battery（1,2 or 3 Optional）

4 x Main Propeller

1 x Tail Propeller

1 x Sticker

2 x Red Rail wing

1 x Instruction
